Beamforming is a technique generally used in signal processing and employed by acoustic cameras to discern specific sound sources, such as compressed air leaks and partial discharges (PD). Nonetheless, the effectiveness of this method depends on various factors, and not all camera manufacturers employ it with equal proficiency. In this article, we provide an overview of how the most advanced devices leverage beamforming for optimal results.
Beamforming in a Nutshell
The fundamental principle of beamforming revolves around wave energy, which can be mechanical (water waves) or electromagnetic (sound waves traveling through air). The technique involves transmitting waves with a specific signal and directing them toward a receiver, rather than letting the signal spread in all directions. Despite its simplicity, beamforming is not a new concept. It was initially used by French troops during World War I to develop a listening device that detected approaching aircraft. Later, beamforming was refined for radio antennas to focus their signals in one direction and enhance their strength compared to other sounds.
Acoustic cameras use the technique by inverting it; they reinforce the sound signals arriving at them from a desired direction and minimize sounds from other directions, often regarded as background noise. This technique is known as beamforming, and it is used to process microphone array data to generate visual representations of the distribution of the acoustic source strength. Robert Dougherty, in his 2008 conference paper titled "What Is Beamforming?", defines aeroacoustic beamforming as this method of processing.
Localizing sound sources using an acoustic camera is based on the principle that sound waves or signals reach different microphones in the camera's array at slightly different times. When the sound source remains stationary, it always emanates from a specific angle relative to the camera, causing the signal to reach certain microphones before others. The remaining microphones in the array receive a delayed version of the sound signal. By adding up these delays, it becomes possible to accurately calculate and determine the precise location of the sound source.
By enhancing the noise robustness of the microphone array, beamforming enables acoustic cameras to detect even faint sounds in noisy environments, such as the detection of small leaks in paper and pulp mills. Additionally, beamforming in acoustic cameras enables the precise localization of sound sources over vast distances and large areas.
Optimizing the Camera Maximizes the Beamforming Results
Optimizing an acoustic camera's performance involves several key factors, such as determining the appropriate number and placement of microphones in the array and designing its geometry. The computing power of the device is also a critical factor in achieving accurate beamforming results. FLIR's acoustic imaging cameras leverage advanced optimization techniques to fully utilize beamforming, resulting in three significant advantages over other camera manufacturers:
How do analytics improve the process?
Once an acoustic camera has effectively implemented the beamforming technique and precisely identified sound sources, the focus shifts to its analytical capabilities. FLIR acoustic imaging cameras employ analytics to eliminate unnecessary sound sources and provide valuable data on the detected sounds. In the context of identifying compressed air leaks, knowing the size of the leak and estimating its costs are crucial factors in determining the most appropriate maintenance plan, such as whether repairing the leak is cost-effective.
FLIR acoustic imaging cameras use analytics to display a Phase-Resolved Partial Discharge (PRPD) pattern, illustrating the partial discharge activity during partial discharge detection. While some can identify the type of partial discharge based on this pattern, only a few understand the consequences of each PD type. To address this issue, FLIR acoustic imaging cameras offer an accompanying acoustic camera viewer cloud software to automatically categorize the type of partial discharge, assess its severity based on its location and strength, and suggest appropriate solutions to resolve it.
REDUCE INSPECTION TIME BY UP TO 90%
In most factories, compressed air systems are one of the largest electricity cost centers. That’s why it’s important to detect compressed air leaks and equipment inefficiencies as early as possible - and fix them immediately. But finding air leaks isn’t easy to do using traditional inspection methods, such as soap bubble testing, which take significant time.

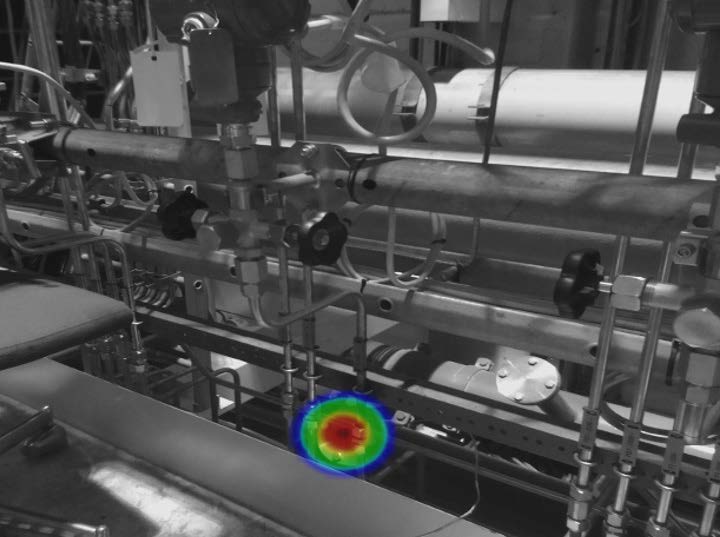

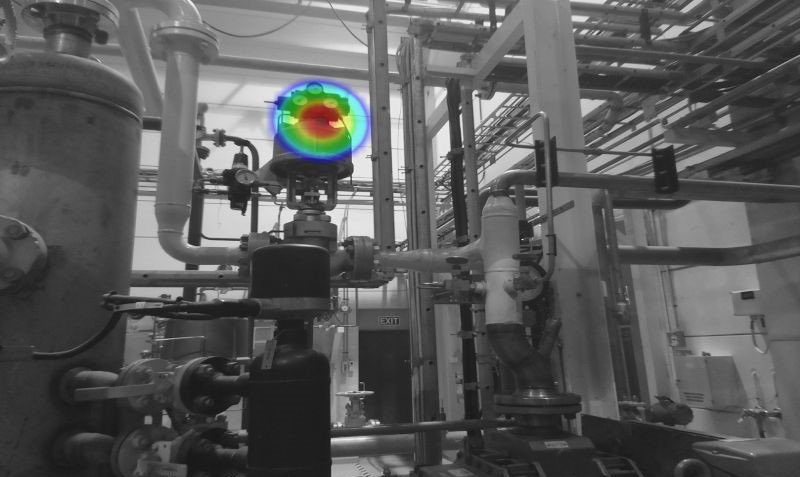

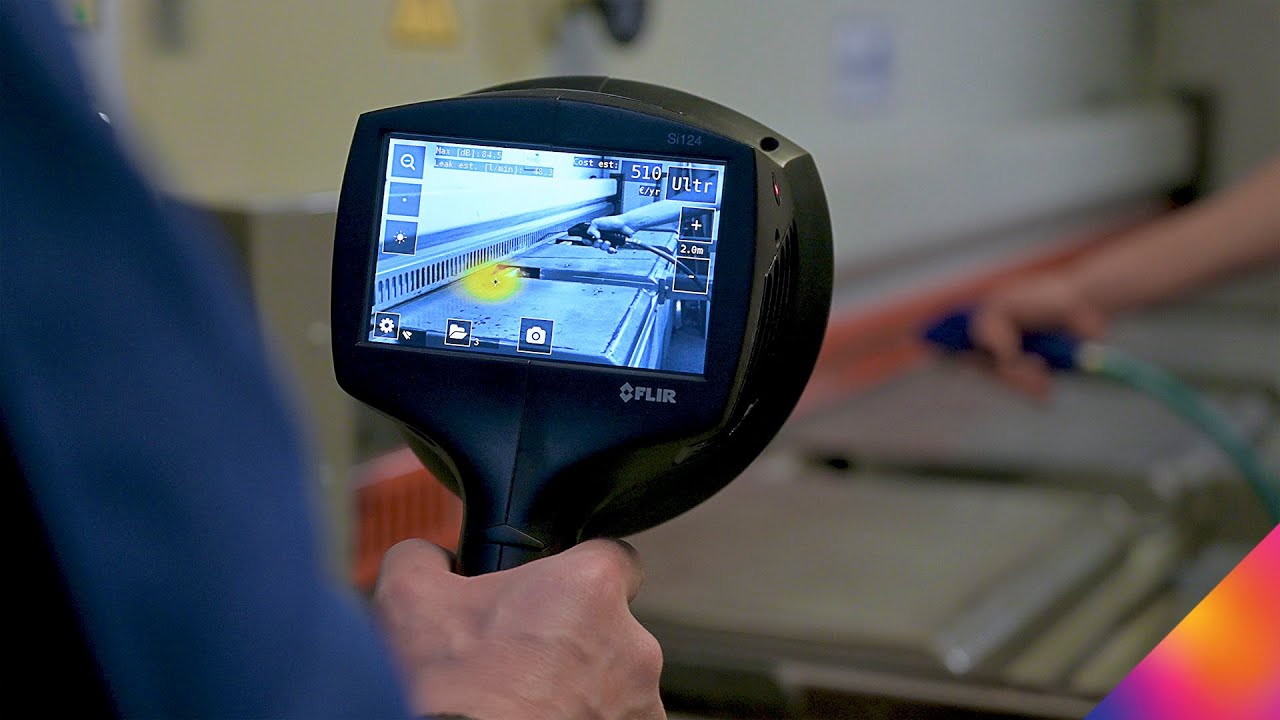

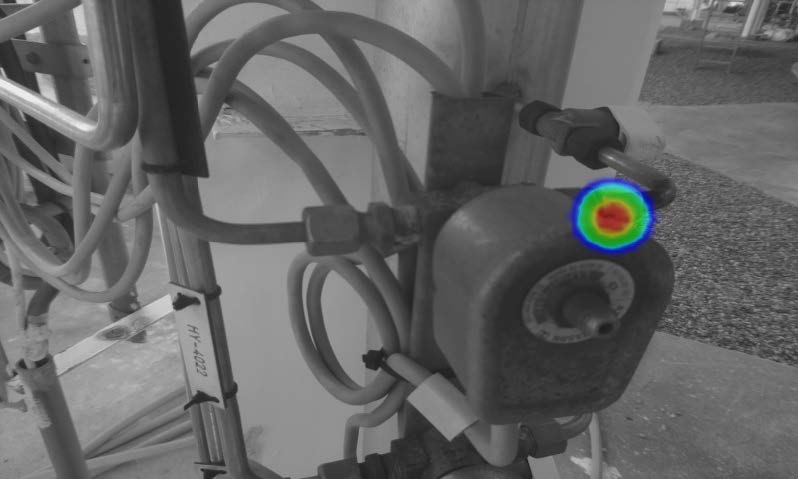

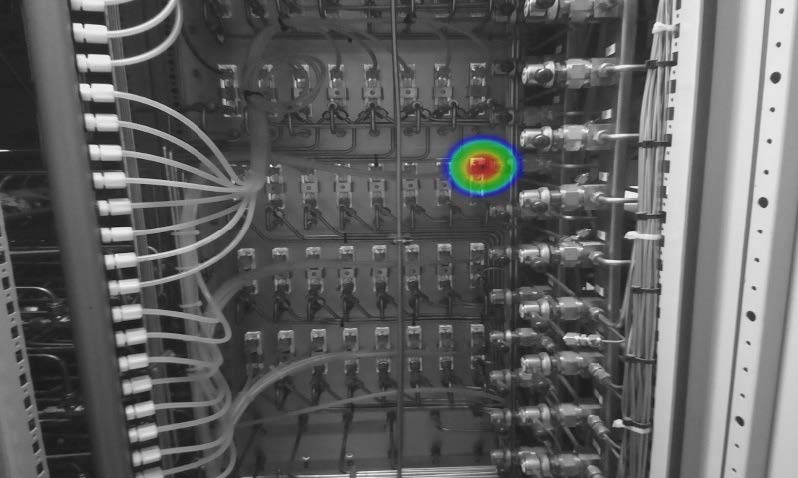

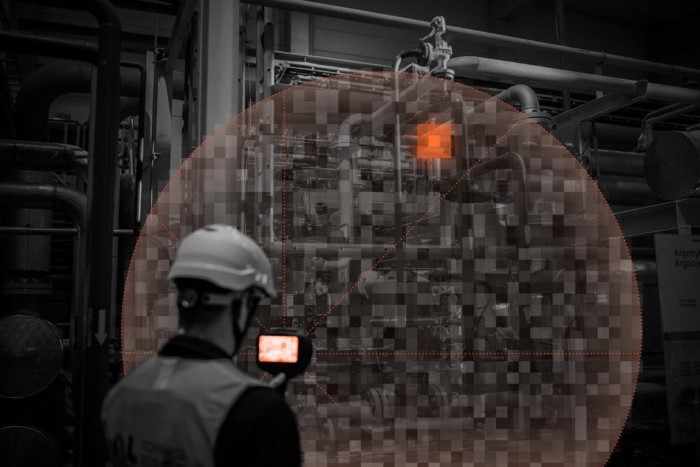

Most leaks create turbulence which in turn creates ultrasonic noise. An acoustic imaging camera, such as the FLIR Si124, pinpoints the source of that noise and overlays that “hotspot” onto a visual camera picture in real time. By imaging the noise source, we can improve ultrasound inspection time by approximately 90 percent. Inspectors can also quickly scan large areas with the camera from a safe distance without touching machinery or shutting down the line. The FLIR Si124 sees through background noise commonly found in industrial environments to produce precise imagery. By listening, recognizing, analyzing ultrasonic sounds, and ultimately understanding what different sounds mean, an acoustic imager allows operators to instantly and accurately pinpoint the source of an air leak.
The FLIR Si124 is ideal for pinpointing leaks in complicated, difficult-to-access locations.
Adopting acoustic imaging as part of a predictive maintenance routine, professionals can identify issues fast, cut excess costs, and keep manufacturing operations going.
SMART LEAK QUANTIFICATION AND COST ANALYSIS
Any typical ultrasonic microphone can locate air leaks if the sound pressure levels they emit are strong enough. But if the user is not trained in acoustics, using these kinds of devices without any analysis capabilities will not provide the results needed to make informed maintenance decisions. Historically, converting leak sound files into leak size estimates and cost estimates involves using tables or complicated algorithms. The FLIR Si124 eliminates this problem by making analysis easy with minimal training.
Fixing compressed air leaks found with the FLIR Si124 can save manufacturers tens of thousands of dollars in electricity costs every year.
The Si124 is a smart tool with on-device analytics, providing leak-size and leak-cost analysis. This makes it easy for a facility to quickly calculate the estimated yearly energy expense caused by compressed air or vacuum leaks.
After images are captured with the Si124, the camera automatically saves them to the FLIR Acoustic Camera Viewer cloud service over Wi-Fi. Then users can review stored images for in-depth analytics, generate reports for air leak audits, and conduct deep analysis effortlessly or use FLIR Thermal Studio software to create advanced reports or to combine thermal imaging and acoustic imaging in the same report.
The camera is simple to configure and can be connected directly to the factory Wi-Fi network.
FILTERS OUT BACKGROUND NOISE
Finding the optimal frequency in a noisy environment.

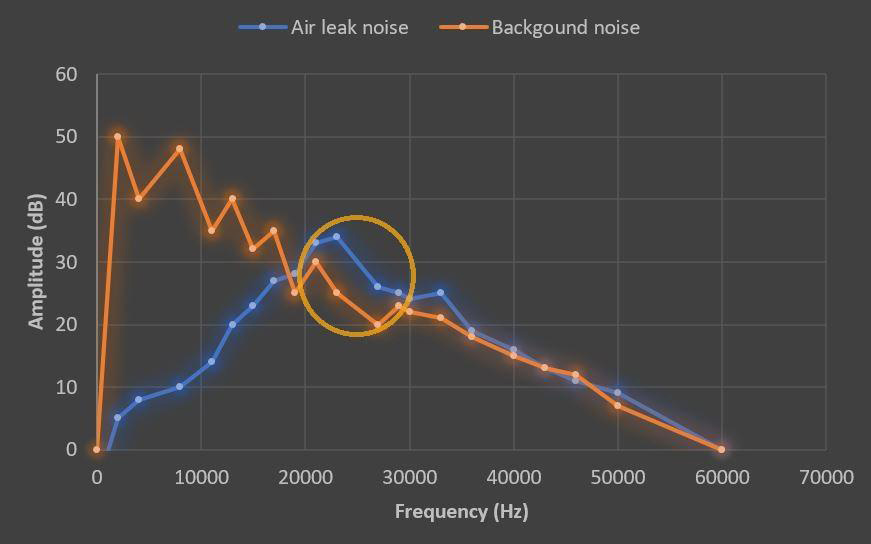

Pressurized air leaks generate broadband sound that extends from audible to ultrasonic frequencies. Industrial manufacturing facilities have various levels of background noise, making it next to impossible to hear an air leak with the human ears alone. In general, background noise interferes less at high frequencies, and air leaks are best detected at long distances with frequencies between 20 and 30 kHz. The FLIR Si124 frequency range of 2 to 31 kHz is optimized to detect the smallest leaks at the longest distances or to detect even smaller leaks at close distances using frequencies up to 65 kHz.
When comparing standard ultrasonic detectors, one might get the impression that air leaks emit only specific ultrasonic frequency sound, and in order to detect them, this frequency range should be used. However, this is not the truth—in some cases, it may be beneficial, but in others, it can harm the detection sensitivity. The most suitable frequency used for detection depends on several different factors. Nonetheless, background noise can still interfere. In these cases, the device must be able to differentiate sound sources that resemble a leak from other interfering sound sources. Most acoustic cameras on the market today require the user to manually filter out any interfering noise using sliders to select a frequency range. This time-consuming trial-and-error approach significantly increases the risk that many problems are left undetected.

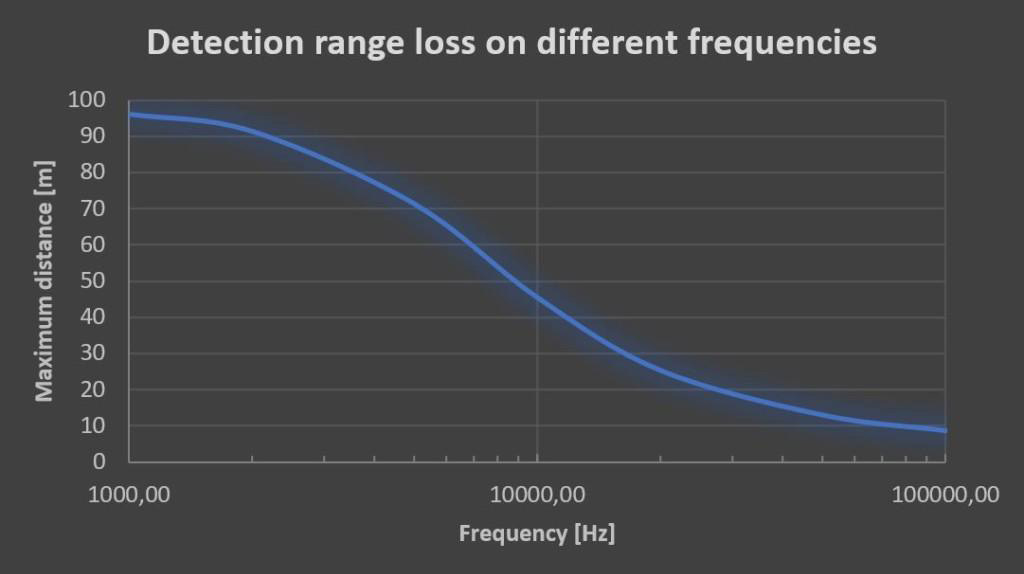

An example of detection range loss on different frequencies.
The FLIR Si124 has a different approach: it automatically detects sound patterns that resemble those of air leaks and removes interfering noises for both single and multiple sound sources using advanced on-camera AI filters. In other words, the camera recognizes whether the sound resembles an air leak vs. background noise — so the user doesn’t have to.
The FLIR Si124 can detect any pressurized gas leak as long as there is enough of a pressure differential (psi minimum is a good rough value).
To detect very high frequency sound sources, the acoustic camera must have a multitude of microphones—preferably quite close to each other. Otherwise, issues of spatial aliasing will occur, meaning erroneous results and sound sources displayed at invalid locations. It is tempting to include higher frequency support in the acoustic camera for marketing purposes, as higher numbers often look better. The reality is that using frequencies that are too high will not provide any benefits and instead make the performance worse.
ACCURACY WITH LESS EFFORT

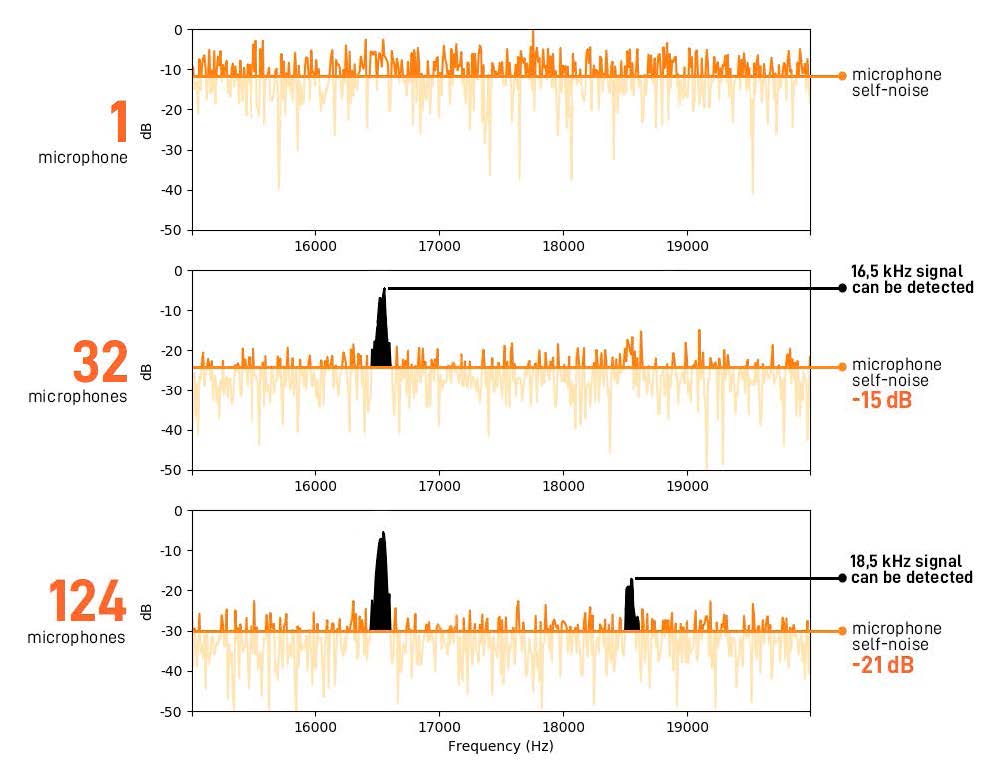

This figure shows how the number of microphones impacts the ability to “see” problems. With 124 microphones,
the Si124 allows the user to easily see two noise peaks generated by a leak vs. 1 peak with a camera using only 32 microphones.
In acoustic imaging, the number of microphones the camera has plays a critical role. In general, the higher the number of microphones, the better the acoustical performance. Acoustic cameras generally use MEMS (microelectro–mechanical systems) type microphones, as they provide great performance, stability, low-power consumption, and they are small in size. MEMS microphones can typically pick up loud noises (usually over 120 dB(A)), but they also have a high self-noise level, which means that a single microphone cannot pick up the quietest sound levels; however, this self-noise can be eliminated by combining the signal from multiple microphones. Doubling the number of microphones removes roughly 3 dB of noise. Therefore, the sensitivity for detecting quiet sounds can be increased by maximizing the number of microphones.
Facilities can reduce compressed air and vacuum leak inspection time by up to 90 percent without extensive training using the FLIR Si124.

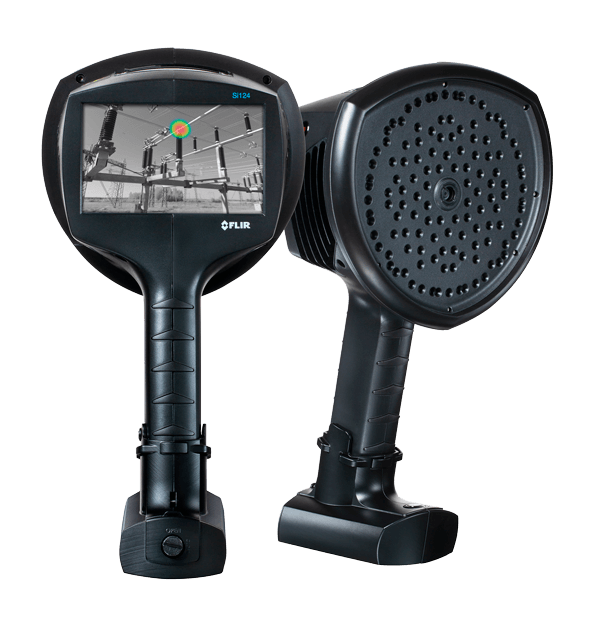

The FLIR Si124 features 124 microphones – twice the number of competing acoustic imagers – to detect air leaks as small as 0.016 l/min in optimal conditions. This level of accuracy is made possible thanks to the Si124’s industry-leading defect-detection sensitivity, distance range, and unprecedented number of onboard microphones.
FLIR IS A TRUSTED SUPPLIER OF DECISION-SUPPORT SOLUTIONS
Manufacturing professionals depend on FLIR to offer reliable, quality solutions that make their jobs easier, so they have more time to focus on other priorities. FLIR added acoustic imaging to the company’s suite of thermal products to enable facilities to do their jobs faster, more safely, and more efficiently. The Si124 also hosts a simple yet robust reporting tool to further assist customers in identifying problems and prioritizing what needs the most attention.
