Clamp Meter vs. Digital Multimeter (DMM): Detailed Explanation

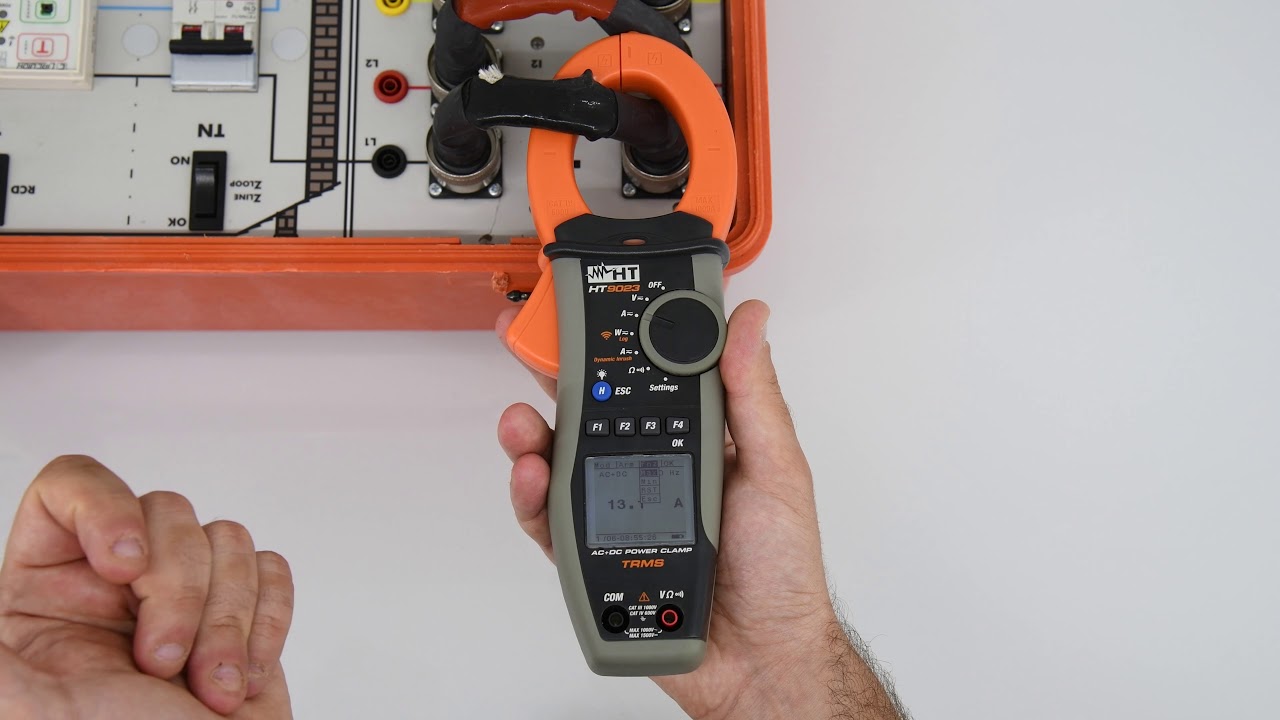

[Clamp Meter]

Overview

A clamp meter is an electrical measuring instrument that can measure current (Amps) without direct contact with a circuit. It works by detecting the magnetic field around a conductor, making it ideal for electrical maintenance and industrial applications.

Key Features

1. Current Measurement (AC/DC)

• Measures current by clamping around a conductor without breaking the circuit.
• Available for both AC (Alternating Current) and DC (Direct Current).
• Can measure high currents (tens to hundreds of Amps).

2. Voltage & Resistance Measurement

• Some advanced models support voltage (V) and resistance (Ω) measurement using test probes.

3. Frequency (Hz) and Power Measurement

• High-end models can measure power (W), power factor (PF), and frequency (Hz).

4. Non-Contact Voltage Detection (NCV)

• Detects the presence of voltage without touching the wire, preventing electric shock risks.

5. Microcurrent (μA, mA) Measurement (Advanced Models)

• Some models can also measure low-current signals for specialized applications.

How It Works

Clamp meters operate based on magnetic induction using a Hall Effect Sensor or a Current Transformer (CT).

• AC current measurement: Uses electromagnetic induction to measure current.
• DC current measurement: Uses a Hall Effect sensor to detect the magnetic field generated by the current.

Common Applications

✔ Electrical power distribution panels and industrial machinery

✔ High-current measurements in motors and large equipment

✔ Solar power systems and high-power electrical circuits

[Digital Multimeter (DMM)]

Overview

A digital multimeter (DMM) is a multi-functional measuring tool that provides high-precision measurements of voltage, current, resistance, and more.
 DMMs are widely used in electronics, electrical troubleshooting, and laboratory testing.

 Key Features

1. Voltage (V) Measurement

• Measures both DC and AC voltage.
• Typical measurement range: millivolts (mV) to 1000V.

2. Current (A) Measurement

• Measures low to moderate currents (μA, mA, A).
• Requires direct connection to the circuit, unlike a clamp meter.

3. Resistance (Ω) Measurement

• Measures resistance in electrical components and circuits.
• High-end models support 4-wire resistance measurement for precision.

4. Diode & Continuity Testing

• Tests diodes and verifies circuit continuity (beep sound for confirmation).

5. Capacitance (μF), Frequency (Hz), and Temperature (°C) Measurement

• Advanced DMMs can measure capacitor values, signal frequencies, and temperature.

How It Works

A DMM converts electrical signals into digital values using an Analog-to-Digital Converter (ADC).

• Current measurement: Uses a shunt resistor to measure voltage drop and convert it into current values.

Common Applications

✔ Circuit design, troubleshooting, and repair

✔ Battery and power supply testing

✔ PCB (Printed Circuit Board) analysis and semiconductor testing

✔ Sensor and diode verification
