What is a Solar Meter?

A solar meter is a device used to measure and analyze the performance of solar power systems.
It helps optimize the efficiency of solar panels by measuring solar irradiance, panel output, temperature, and other key parameters in real time.

Key Functions of a Solar Meter

1. Solar Irradiance Measurement

• Measures the amount of solar energy (W/m²) received by the solar panel.
• The standard solar condition (STC) is typically 1000 W/m².

2. Panel Voltage (V) and Current (A) Measurement

• Measures DC voltage and current generated by the solar panel.
• Some models provide I-V curve analysis to identify the maximum power point (MPP) and check panel performance.

3. Solar Power Output (W) Measurement

• Calculates the power output (Watt, W = V × I) of the panel.
• Helps identify the maximum power point (MPP) for maximum efficiency.

4. Temperature (°C) Measurement

• Measures the temperature of the solar panel and surrounding environment.
• Since higher temperatures reduce efficiency, temperature monitoring is crucial.

5. Solar Irradiance Logging and Data Storage

• Records variations in solar irradiance for long-term performance analysis.
• Some models allow data storage via SD card, Bluetooth, or Wi-Fi for remote monitoring.

6. Maximum Power Point Tracking (MPPT)

• Analyzes the optimal voltage and current values to ensure the solar panel operates at its most efficient power level.

 Working Principle of a Solar Meter

1. Solar Irradiance Measurement Principle

A solar meter uses light sensors (Pyranometer or Silicon Photodiode Sensor) to measure solar irradiance.

• Pyranometer (Thermopile-based sensor): Measures a wide spectrum (300–2800nm) → Highly accurate.
• Silicon Photodiode Sensor: Measures light within the 400–1100nm range, suitable for compact devices.

Typical unit of measurement: W/m² (Watts per square meter).

2. I-V Curve Analysis Principle

The current-voltage (I-V) curve is analyzed to determine the Maximum Power Point (MPP) of a solar panel.

• Power equation: P = V × I
• In a standard I-V curve, the MPP is the point where power (P) is maximized.
• The solar meter applies different loads to the panel and observes the response to calculate the optimal operating point.

Common issues detected through I-V curve analysis:
✔ Panel degradation or efficiency loss.
✔ Partial shading affecting performance.
✔ Cell damage or connection failures.

3. Temperature Measurement Principle

The solar meter measures the panel's temperature to assess its impact on efficiency.

• Uses NTC (Negative Temperature Coefficient) sensors or thermocouples.
• Higher temperatures reduce panel efficiency (typically 0.4–0.5% efficiency loss per 1°C increase).

 Why is temperature monitoring important?
✔ High temperatures → Lower power output.
✔ Cooling systems may be required to prevent overheating.

Types of Solar Meters and Their Applications

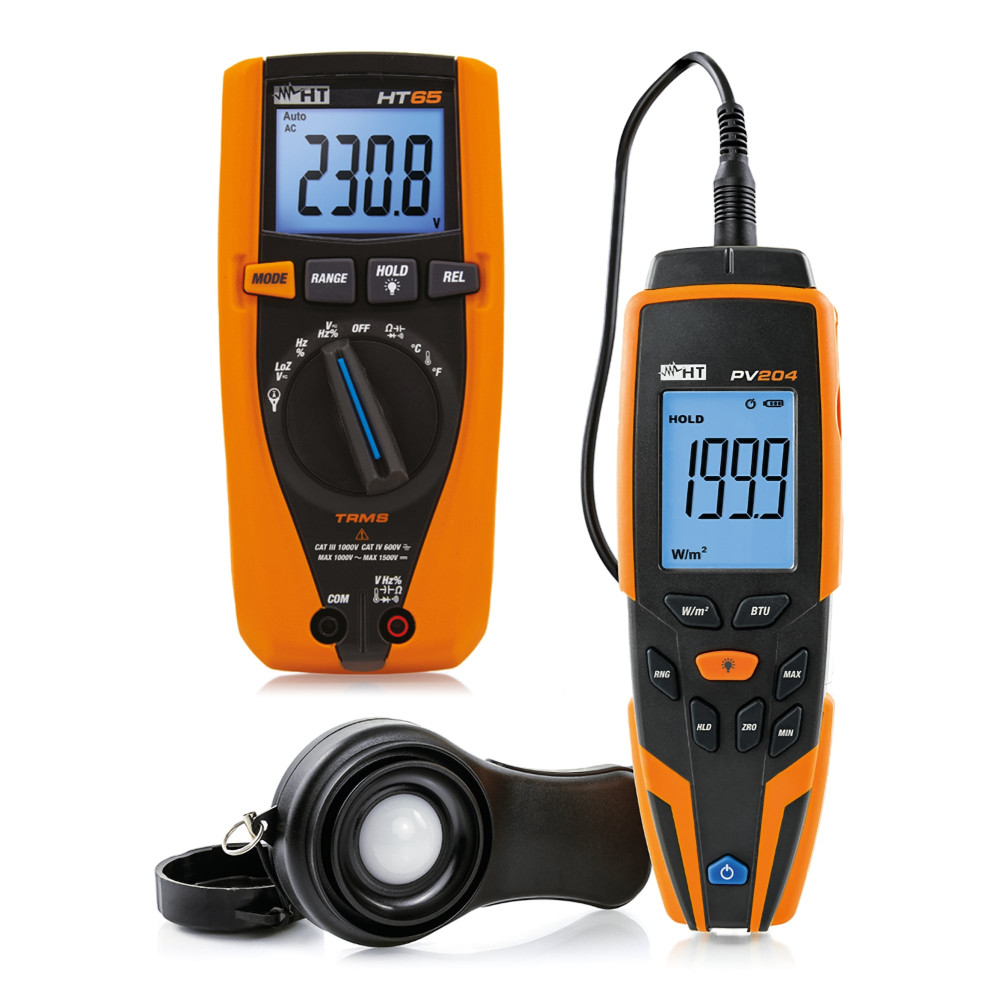

1. Portable Solar Meters

• Purpose: Quick performance analysis of installed solar panels.
• Features: Compact, easy to carry, real-time solar irradiance and power measurement.
• Example models: TES-1333, Tenmars TM-206.

2. Solar Meters with Data Logging

• Purpose: Long-term monitoring of solar irradiance and power output.
• Features: Data storage via SD card, USB, Bluetooth, or Wi-Fi.
• Example models: Apogee SP-230, Solmetric PVA-1500.

3. Fixed Solar Monitoring Systems

• Purpose: Continuous monitoring and efficiency analysis of solar power plants.
• Features: Automatic data logging, cloud connectivity, and advanced analytics.
• Example models: SMA Sunny SensorBox, Kipp & Zonen SMP10.

Practical Uses of a Solar Meter

✔ Site Evaluation Before Solar Installation

• Measures solar irradiance at a specific location to determine its solar energy potential.

✔ Performance Check of Solar Panels

• Measures panel voltage (V), current (A), and power (W) to diagnose faults.

✔ Monitoring Solar Irradiance Variations

• Long-term data collection helps predict seasonal variations in solar power generation.

✔ Maintenance of Solar Power Plants

• Compares real-time solar irradiance and power output to detect panel contamination, cell damage, or shading issues.

Conclusion: Why is a Solar Meter Essential?

 To optimize solar panel performance:
✔ Use a solar meter to measure solar irradiance and panel output.
✔ Analyze I-V curves to find the maximum power point (MPP).
✔ Monitor temperature to maintain efficiency.

A solar meter is an essential tool for maximizing the efficiency of solar energy systems!
